로봇 자율형 휘도 계측 시스템
LMK Robotic Interface, LMK POSITION
-

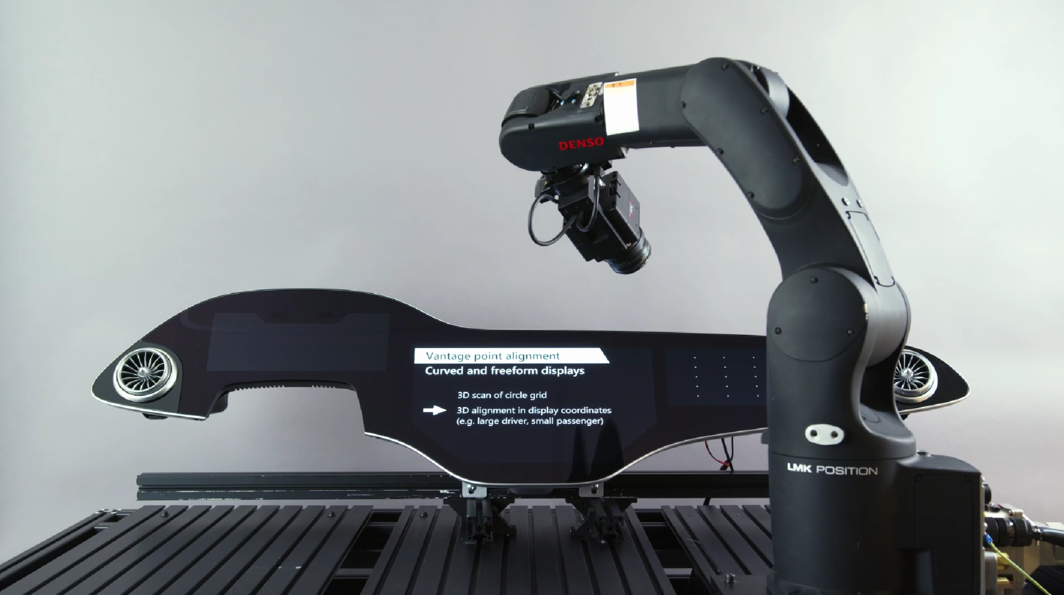

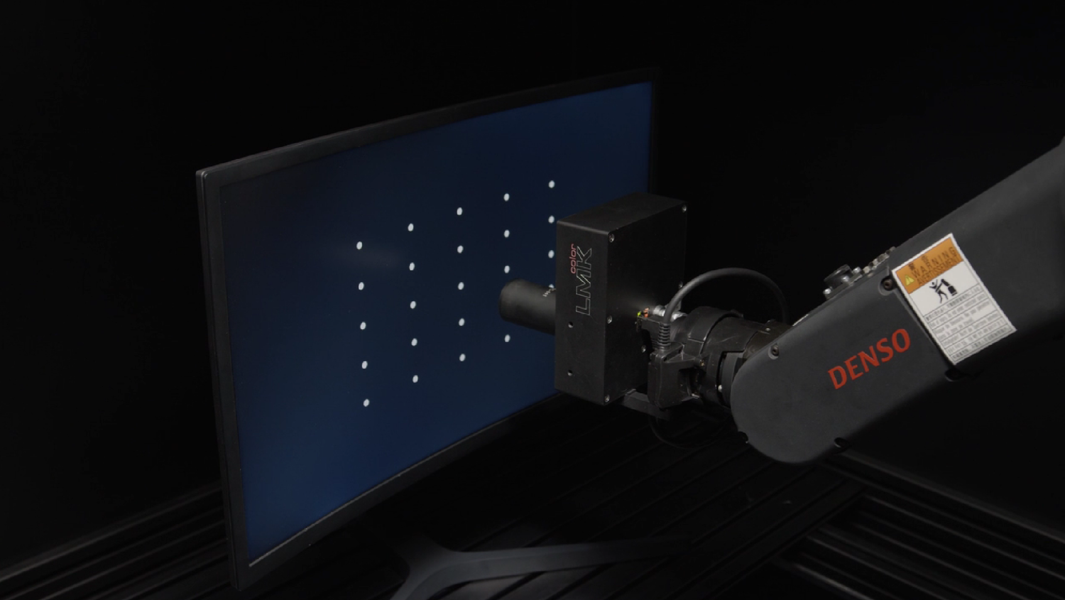

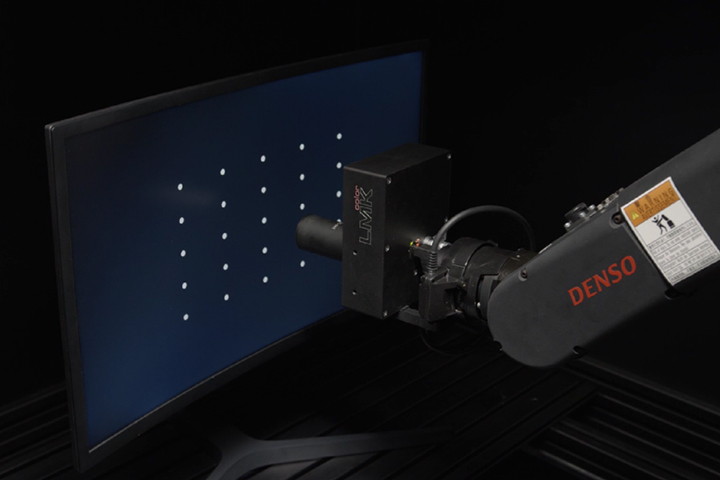

자동 얼라인먼트, 통합 계측 자동화로 디스플레이 평가 패턴을 제어하고 곡률 디스플레이 측정 자동화를 진행합니다.
-

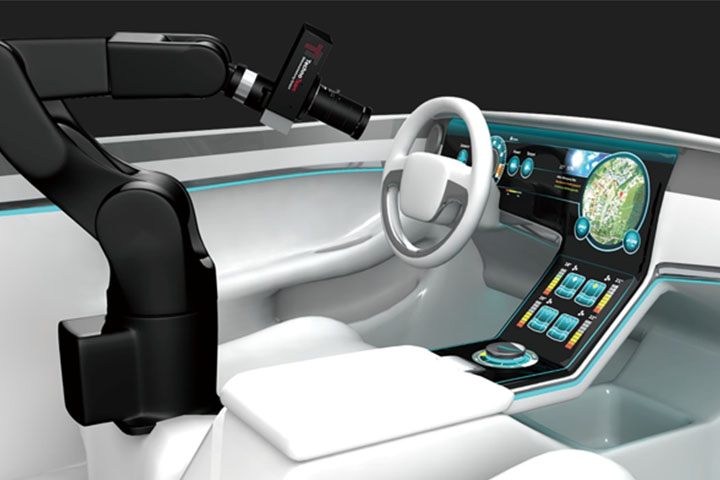

LMK가 자체적으로 디스플레이를 인식하고 로봇을 제어하여 계측하는 로봇 자율형 휘도 계측 시스템
-
측정 조건의 적합성 여부를 자체 판단하여 데이터값 추출
-
복잡한 측정 조건의 간소화 및 원클릭으로 측정 준비 완료 가능
- Maximum arm reach
-
-
875 mm
-
- Axes
-
-
6
-
- Motors/Position detection
-
-
Absolute encoder;AC servomotors for all joints, Brakes for all joints
-
- Motion Range
-
-
J1: ±170; J2: +135 -100; J3: +153 -136; J4: ±270; J5: ±120; J6: ±360
-
- Position repeatability (at the center of an end-effector mounting face)
-
-
±0.03 mm
-
- Weight LMP Position + ALU Profile Rack (Robot, Controller, Cables)
-
-
< 150 kg
-
- Alu Profile Rack outer dimensions (LxWxH)
-
-
780 mm x 780 mm x 950 mm (Robot installation height: 970 mm)
-
- Compatible cameras
-
-
LMK5-5, LMK6-5, LMK6-12, LMK6-30*
-
- Available lenses
-
-
All standard manual focus lenses, autofocus lenses;conoscope, macro lenses, NED lenses
-
- Installation environment of the LMK Position
-
-
Temperature: 0 to 40°C
Humidity: 20 to 90% RH
Vibration: 4.9 m/s² (0.5 G)
-
- Optional equipment
-
-
7th axis (linear) mounted below the robot (below J1)
Specbos 1211-LAN VIS-NIR spectroradiometer,
Industrial operation PC (19" rack)
-
